Machinery Precision Investment Casting Hook Chrome Plating
Precision Cast Components

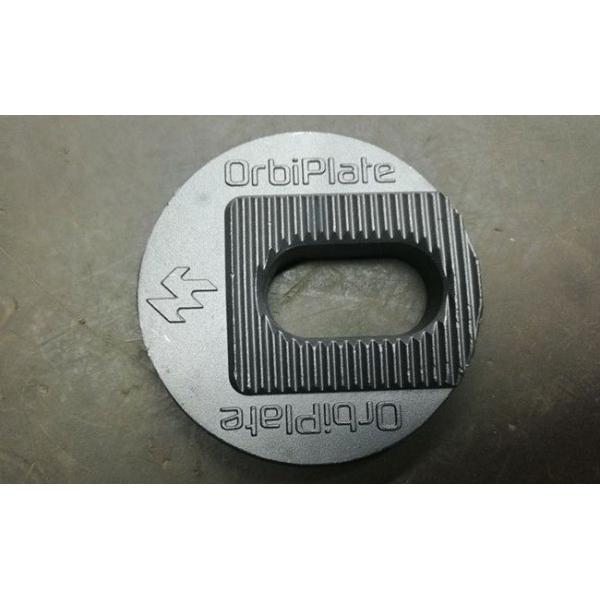

The patented OrbiPlate system is used when connecting steel to
steel or steel to concrete elements and delivers connection
tolerances of up to 20mm around the centre of the connection. It
also provides the ability to achieve fine locational accuracy when
positioning each steel member.
OrbiPlate is quick and easy to install. The steel member is
supplied to site with a pre-formed hole (70mm), which can be
punched or cut at the centre of the connection location. The main
washer is then placed over the hole, rotated to locate the slot
over the ferrule, then secured using the class 8.8 bolt through the
small washer. The bolt can be positioned anywhere along the
elongated slot, providing up to 20mm tolerance in all directions.
1. Alloy Steel
2. High quality&reasonable price
3. Strict quality control
4. First-class service
|Material||Ductile iron , Grey iron , Carbon steel , Stainless steel , Alloy
steel ,Brass , Aluminum etc|
|Application||Automotive , Mining , Railway , Medical , Marine , Machinery
,Construction equipments , household decoration etc|
|Standard||ASTM, DIN, ISO, BS, JIS|
|Main technics||Green cast iron , precoated cast iron , clay cast iron etc|
|Molding choice||Hand molding , Machine molding , Auto molding line|
|Applicable Machining Process||CNC Machining / Lathing / Milling / Turning / Boring / Drilling /
Tapping/Broaching / Reaming / Grinding / Honing and etc|
|Casting Blank Size /Dimensions||2 mm-2000mm|
|Casting weight range||0.1kg-5000kg|
|Finish||Shot blasting , Polishing , Surface passivation , Powder coating
,Painting , Hot galvanized , Dacromat coating or as request|
|Production Capacity||150 ton per month for cast iron|
Precision investment casting Testing Instrument
Spectrum analyzer, tension tester, hardness tester, three
coordinates measuring instrument, caliper, micrometer, dial gauge,
microscope, roughness tester, salt spray testing machine,
ultrasonic flaw detector, X-ray detection machine, magnetic
particle flaw detector, air tightness testing machine, thickness
1 . Professional manufacturer, high reputation.
2 . Good team for quality and delivery time control.
3 . Near Shanghai port and Ningbo port.
4. Sample processing, material processing, material agent
processing, drawing processing,
OEM processing, and other processing are all available.
5. small quantity order accept
6. Original quality
7. OEM service.
8. ISO 9001/TS16949 certified quality management system.
Our investment precision casting production
Casting parts Process flow chart
Our Precision Casting Manufacturing Process
